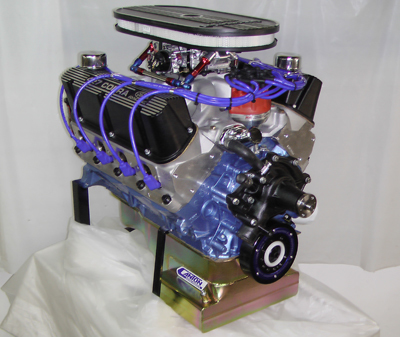

427W Crate Engine With 575 HP

Starting at $13,795

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This happens to be one bad ass small block Ford. We start with a Dart SHP 4 bolt main block which has a 4.125 bore. Don’t be fooled by some who build with a stock block and small bore. This killer engine makes great power and torque so check it out! Don’t forget we build it just for you. This 351W based stroker is one of our best!!

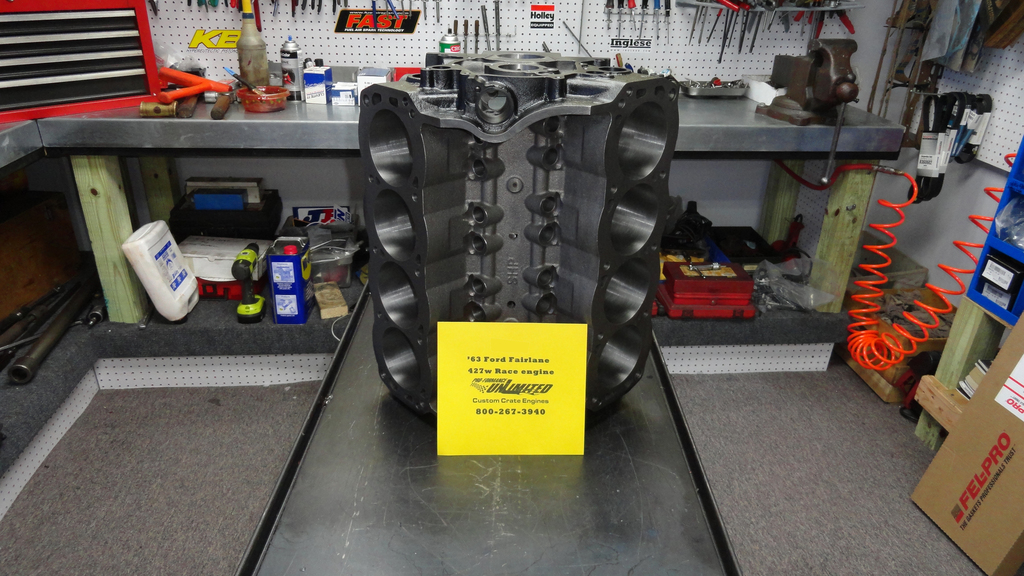

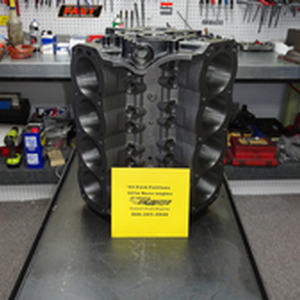

  • Dart SHP 351w big bore block 1pc rear main seal
  • Honed with deck plate
  • Mains have been align honed
  • Block has been decked
  • Dura Bond cam bearings installed
  • Brass freeze plug and oil galley kit installed
  • Block painted with 3 coats of high temp ceramic engine paint

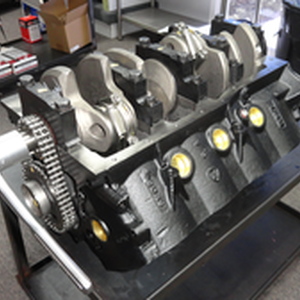

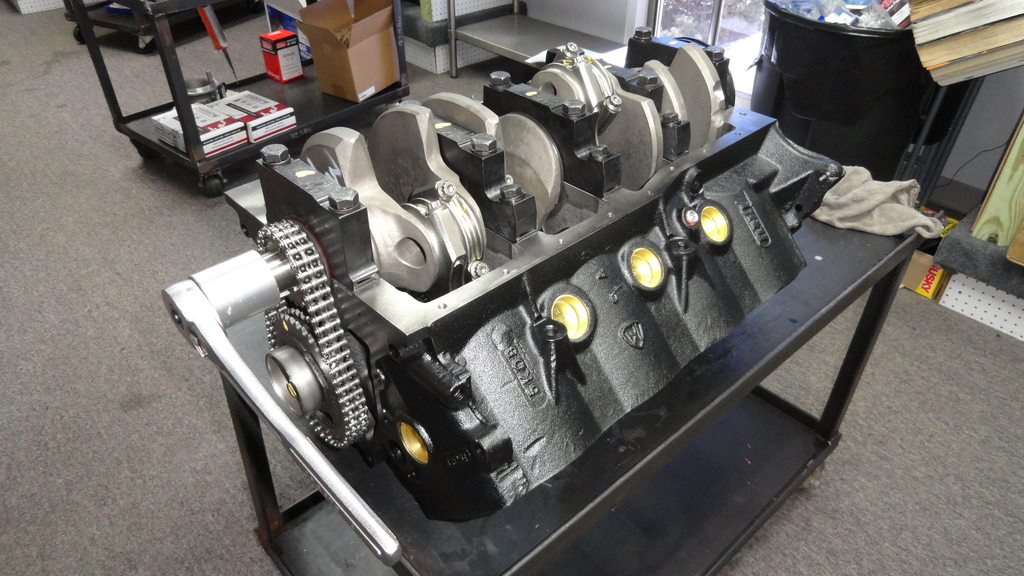

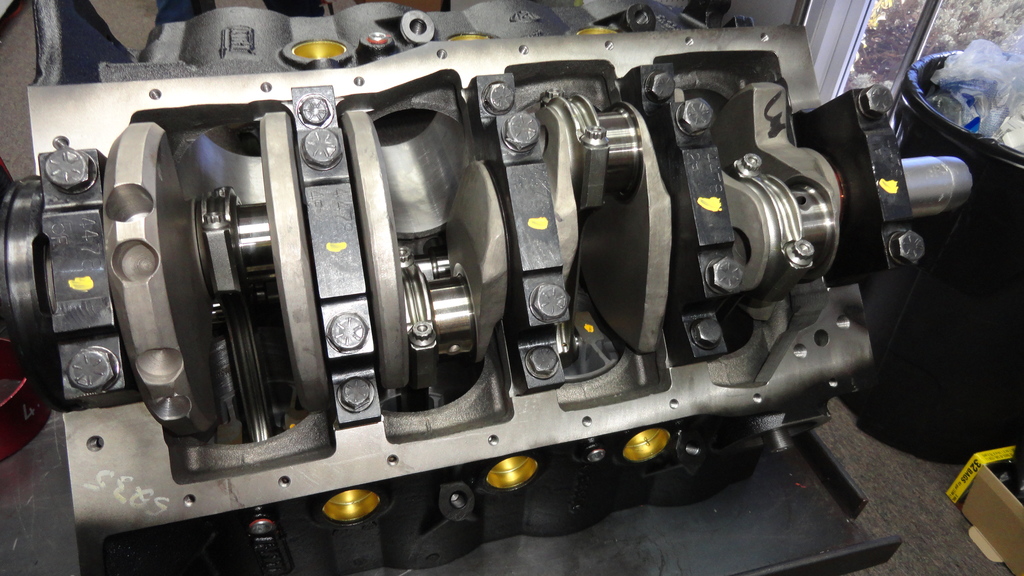

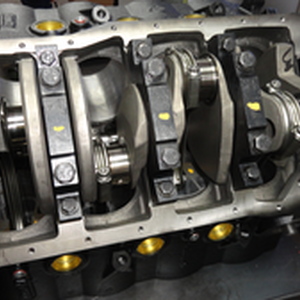

  • Forged steel crankshaft (Eagle or Scat)

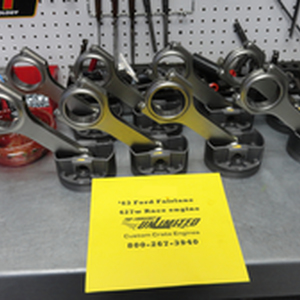

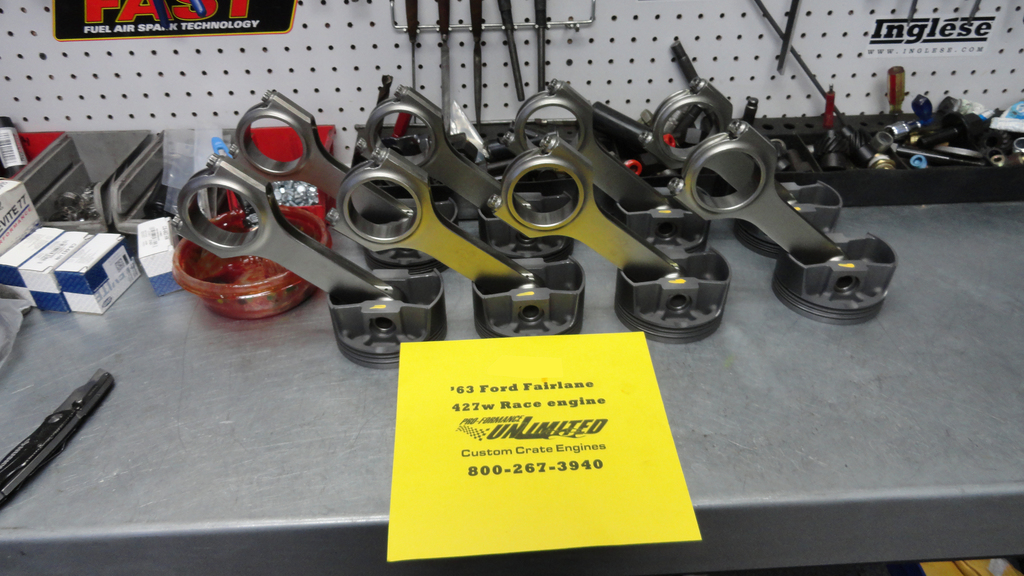

  • I-Beam connecting rods (Eagle or Scat)

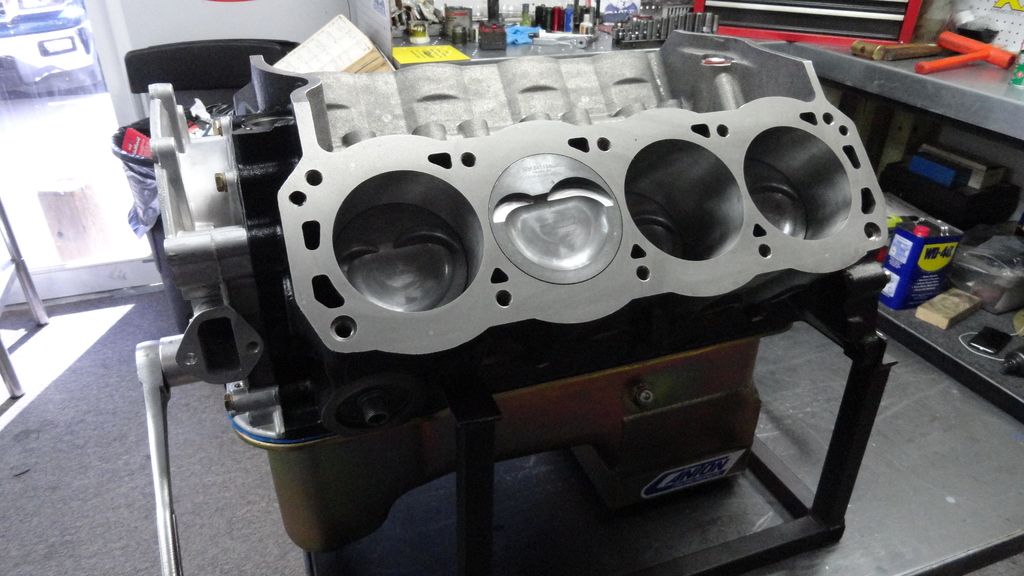

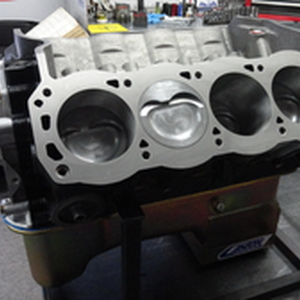

  • High performance Forged pistons (Icon, DSS, or Mahle)
  • Performance rod and main bearing (Clevite, King or Federal Mogul)
  • Performance rings hand filed to match application
  • The complete rotating assembly will be balanced

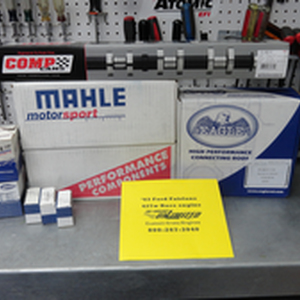

  • Comp Cams custom ground hydraulic roller performance camshaft
  • Three piece true double roller timing set
  • Roller lifters

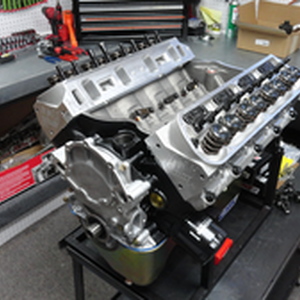

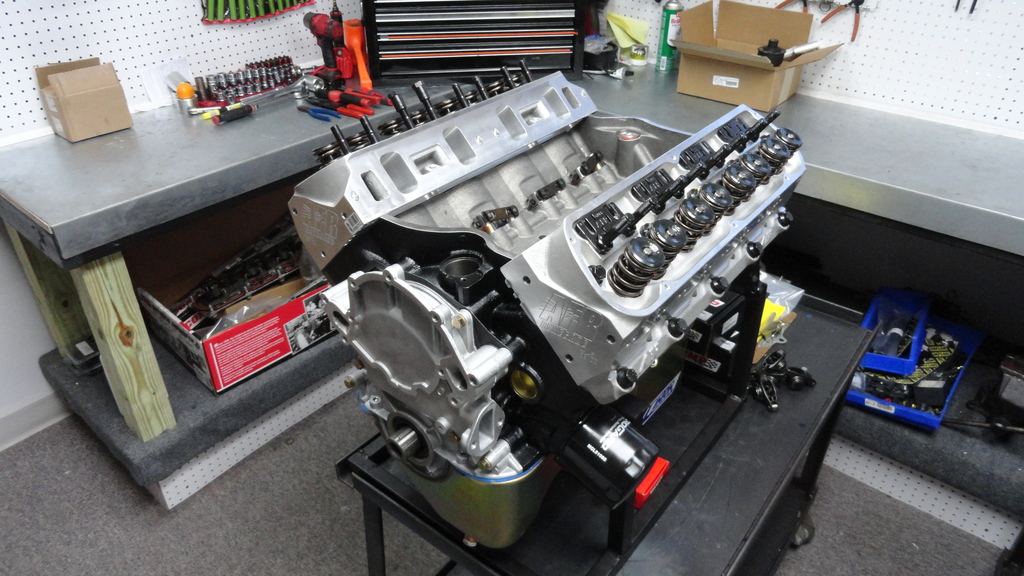

  • Aluminum performance cylinder heads (AFR, Dart or Edelbrock)
  • High performance valve springs and retainers (to match camshaft)
  • 7/16 Screw in studs and hardened guide plates
  • ARP head bolts
  • Chrome moly push rods
  • Performance roller rockers (SSR Series)
  • Melling oil pump
  • Melling oil pick up
  • Canton/Milodon Racing front sump oil pan
  • Timing cover with scale
  • Engine will be assembled with all new bolts
  • Fel-Pro performance gaskets
  • Performance intake manifold (Air-Gap)
  • A new chrome thermostat housing to match intake
  • Holley Ultra HP carburetor
  • Chrome air cleaner
  • Pro-Billet distributor (Requires CDI Box)
  • MSD Blaster II coil and bracket
  • Autolite spark plugs
  • Taylor 8mm ignition wires
  • Water pump
  • Chrome valve covers with baffles
  • Professional Products performance balancer

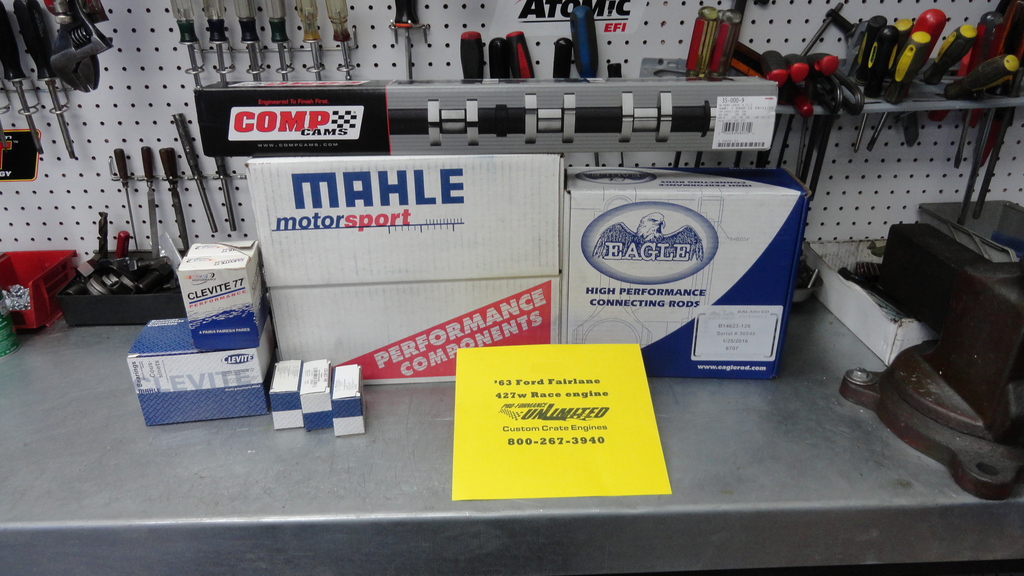

  • As we assemble your engine we take several pictures throughout the building process so you can see the quality of parts and workmanship that goes into your engine
  • Engine will be hot run tested-carburetor and timing set
  • Additional items include:
  • Metal engine stand
  • 1 Year Unlimited Miles Warranty Carburetor Version
  • 2 Year Unlimited Miles Warranty Fuel Injected Version


CVF Logo

Pulley Systems

Alternator Only

Alternator Only

This system includes the following items:

  • Chrome 140 Amp Alternator
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $975

Alternator & Power Steering

Alternator & Power Steering

This system includes the following items:

  • Chrome 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Polished Idler Pulley
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $1,875

Alternator, Power Steering &  Air Conditioning

Alternator, Power Steering & Air Conditioning

This system includes the following items:

  • Chrome Plated 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Chrome Plated AC Compressor
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $2,300


Dyno Testing

Have your new crate engine Dyno tested!

Have your new crate engine Dyno tested!

Proformance Unlimited measures over 30 parameters that are monitored and logged to the computer during each engine test. A complete printout, including graphs.

We tune your engine on the dyno for maximum power. No more endless trial and error methods at the track are required. You see your results instantly! Dynamometer testing costs a fraction of what you have invested. Take the guesswork out of tuning - by dynoing !

This system includes the following items:

  • Your engine will be broken in under various load conditions
  • Tested in real world conditions through headers and mufflers
  • Precise horsepower and torque rating with graph and numerical print out
  • Induction system tuned for optimal performance
  • Dyno session video taped

Add $650


Fuel Delivery Systems

Holley Sniper EFI

Holley Sniper EFI

This system includes the following items:

  • Die Cast Throttle body Handheld Controller
  • (4) Hi-Flow 650 HP injectors
  • Built-in pressure regulator
  • Internal MAP Sensor
  • Throttle Position Sensor
  • Idle Air Control
  • Coolant Temp Sensor
  • Wide band O2 Sensor
  • O2 Bung Kit
  • -06AN Fuel Inlet Fitting
  • Gasket Kit

Add $1,250

Holley Terminator X Multi-Port Fuel Injection

Holley Terminator X Multi-Port Fuel Injection

This system includes the following items:

  • Multi-Port EFI Intake
  • Terminator X ECU
  • Holley Wiring Harness
  • Handheld Controller
  • (8) Injectors Matched To Application
  • Billet Fuel Rail
  • Internal MAP Sensor
  • Throttle Position Sensor
  • Idle Air Control
  • Coolant Temp Sensor
  • Wide band O2 Sensor
  • Hyper Spark Distributor
  • -06AN Fuel Inlet Fitting

Add $2,300


Parts

MSD Mini High Torque Starter

MSD Mini High Torque Starter

This system includes the following items:

Add $325

MSD 6AL Series Ignition Box

MSD 6AL Series Ignition Box

This system includes the following items:

  • Higher output with 530 primary volts and 135mJ of spark energy
  • Efficient components use less current to produce more power
  • Set an rpm limit on the 6AL with two rotary dials in 100 RPM increments
  • Same bolt pattern as the original 6AL with a lower profile housing
  • Built-in LED for system checks
  • All wires exit the same side through a locked, sealed connector

Add $290

Manual Flywheel - Ford

Manual Flywheel - Ford

This system includes the following items:

  • 157 Or 164 Tooth

Add $250


Dress Up

Custom Painted Engine

Custom Painted Engine

Have a custom painted car? Why not have a custom painted engine? Give us your paint code and we'll do the rest.

This system includes the following items:

  • Custom paint

Add $350

Cobra Valve Cover And Air Cleaner Upgrade Kit

Cobra Valve Cover And Air Cleaner Upgrade Kit

This system includes the following items:

  • Cobra Valve Covers
  • Cobra Air Cleaner

Add $275

Black Finned Kit

Black Finned Kit

This system includes the following items:

  • Powder coated finned aluminum valve covers
  • Powder coated finned aluminum oval air cleaner
  • Powder coated finned aluminum Breather’s

Add $250


Transmission

Automatic Transmission Package C4 or C6

Automatic Transmission Package C4 or C6

This system includes the following items:

  • C6 3 Speed transmission built to match engine
  • 2400/3200 RPM stall speed converter matched to engine power band

Add $2,100

Tremec TKX 5 Speed Manual Transmission Package

Tremec TKX 5 Speed Manual Transmission Package

This system includes the following items:

  • New TKX Street and Strip, 26-spline input shaft, full factory warranty
  • Gear Ratios: 2.87, 1.89, 1.28, 1.00, .68
  • Main Case Streamlining - Modified to fit your tunnel
  • AP Revolution Shifter Mechanism - Original 4-speed shift position
  • Driveshaft Slip Yoke - Cryogenically hardened steel
  • Cross Member - Modular T6061 Aluminum, bolt-in
  • Transmission Mount - Polyurethane
  • Pilot Bearing - Stainless rollers, grease pre-pak
  • Reverse Light Harness
  • Speedometer Conversion
  • Shifter Knob
  • Hardware
  • Instructions
  • Bell Housing
  • Billet Steel Flywheel
  • FLYWHEEL BOLT, SET OF 6, Race Grade 8
  • SBF 8mm PP Bolt Set
  • CLUTCH KIT
  • 10.5" LOW FLEX FORMED PRESSURE PLATE
  • FULL FACE WOVEN KEVLAR SPRUNG HUB DISC
  • ALL STEEL RELEASE BEARING
  • STAINLESS PILOT BEARING
  • LIGHT PEDAL EFFORT
  • Hydraulic Clutch Actuator System Kit Includes:
  • Concentric Slave Bearing - Dual line, double width seals
  • Steel Braided Lines - Teflon Lined Stainless Steel
  • 3/4" Bore Master Cylinder-Black Powder Coated
  • Hydramax Firewall Mount - Patented Adjustable Mount w/Firewall Stiffener
  • Reservoir Kit - Remote or local mount, plastic (billet upgrade available)
  • Pedal Rod and Hardware - Model Specific, Adjustable Length
  • Fittings, hardware and complete instructions.

Add $Call for custom quote
