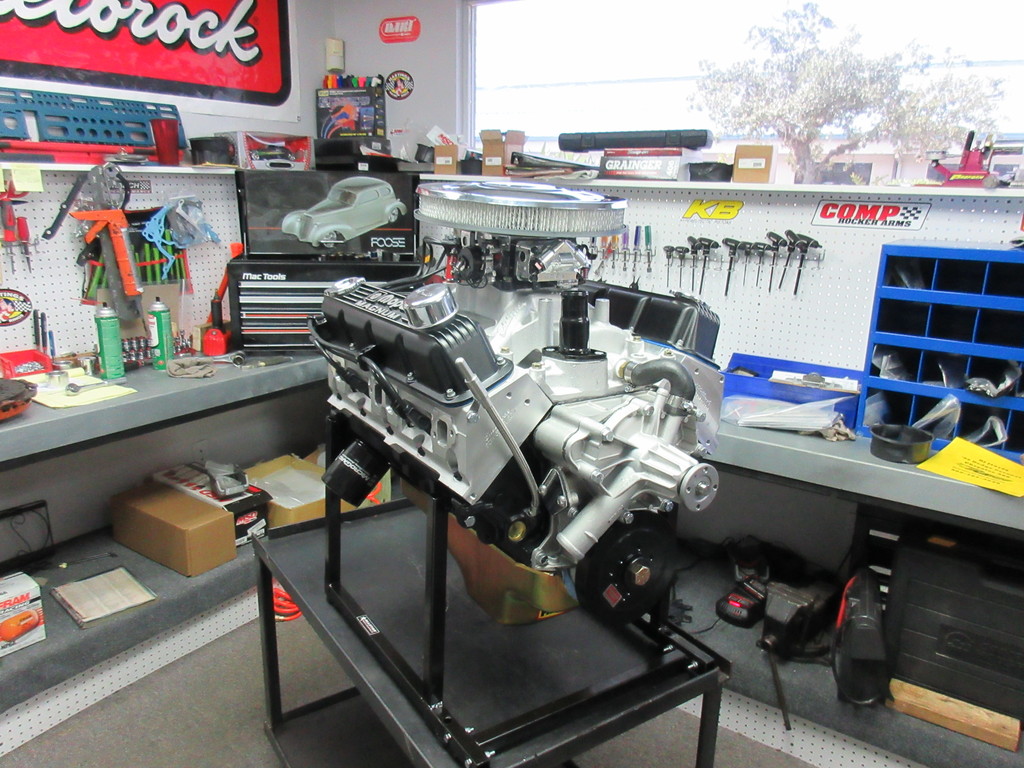

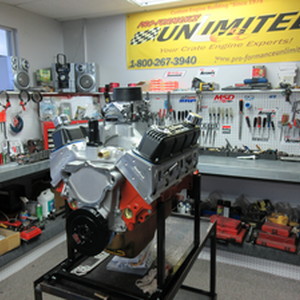

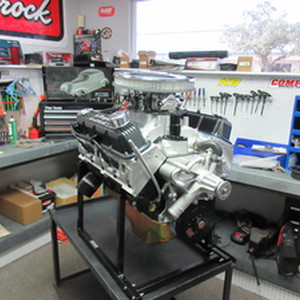

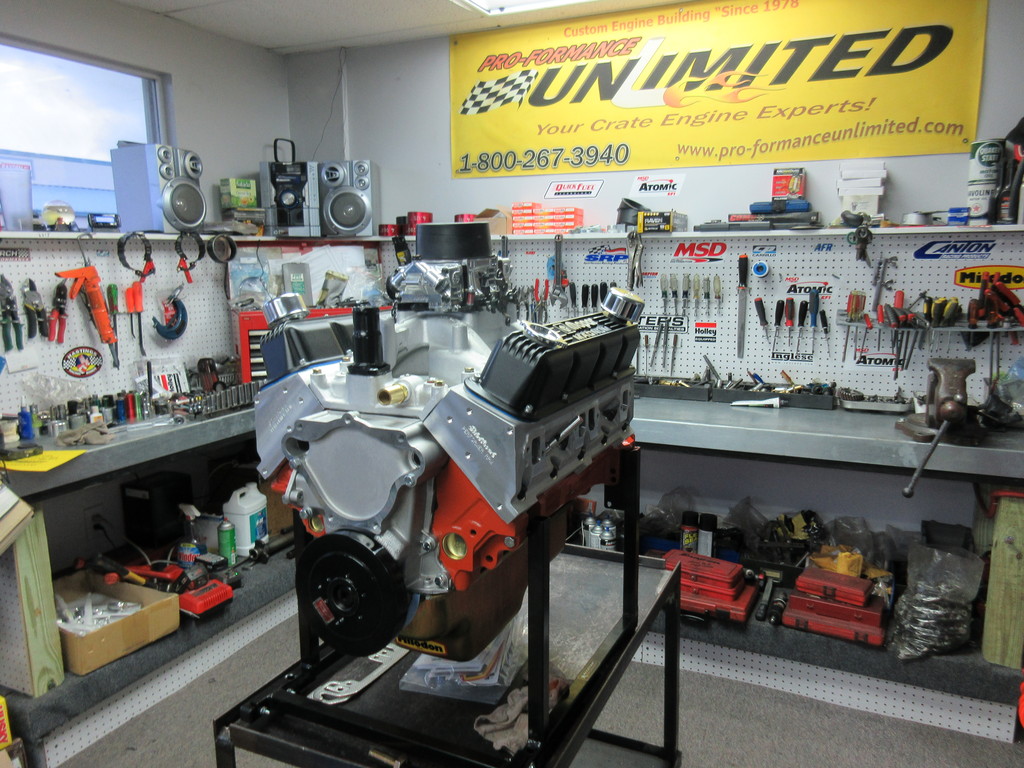

360 C.I. Chrysler Crate Engine With 475 HP

Estimated Price $14,545

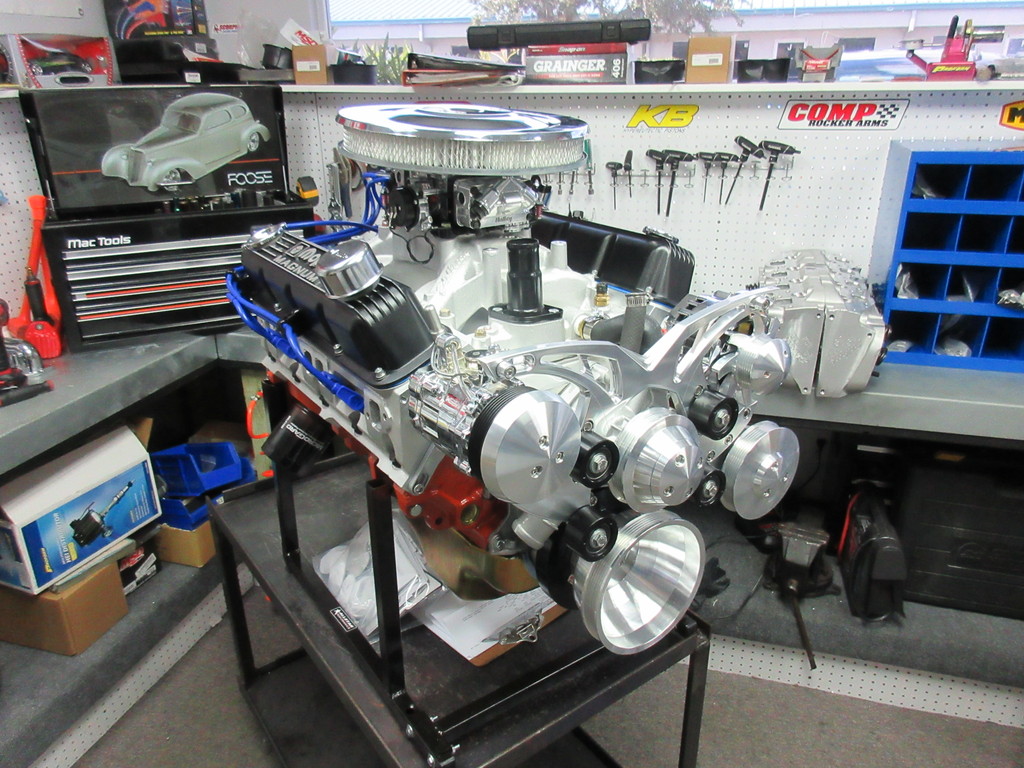

360 C.I. Chrysler Crate Engine With 475 HP
*Shown with optional upgrades

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Chrysler 360 with 475HP engine package can be custom designed to tailor to your specific needs. All engines can be custom painted to match your vehicle at your request. We can outfit your engine with the exclusive March Performance serpentine belt system. We can also assist you in choosing the proper transmission and stall speed converter combination for your vehicle and have it shipped directly to you as your performance crate engine is being built.

360 C.I. Chrysler Crate Engine With 475 HP

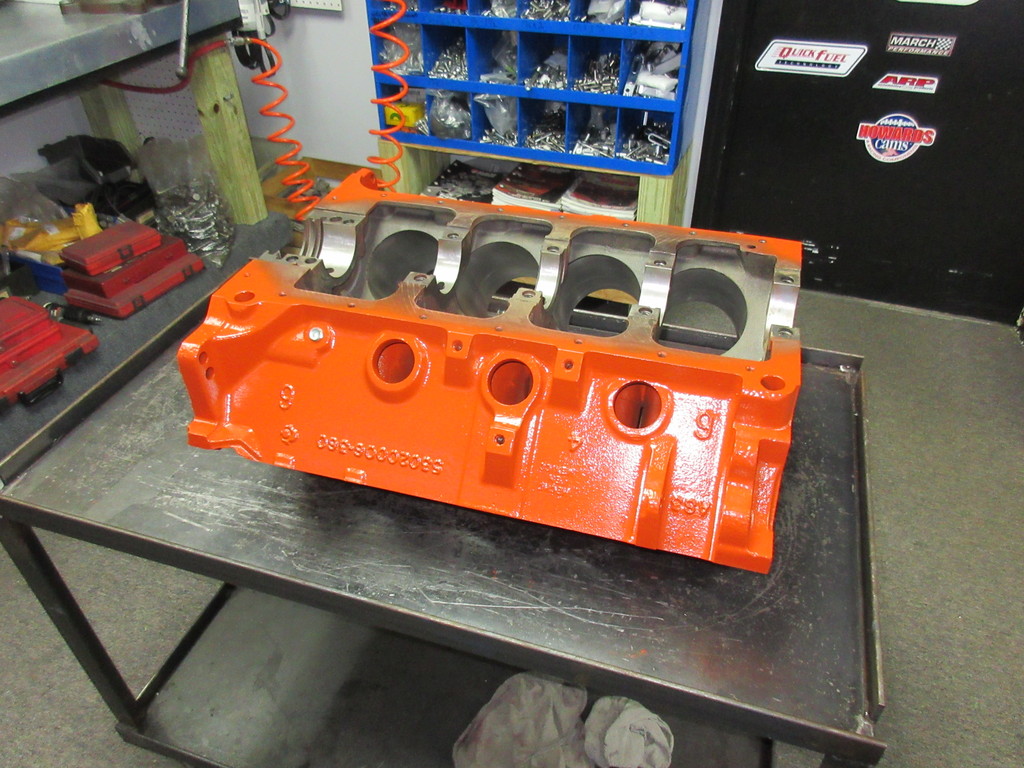

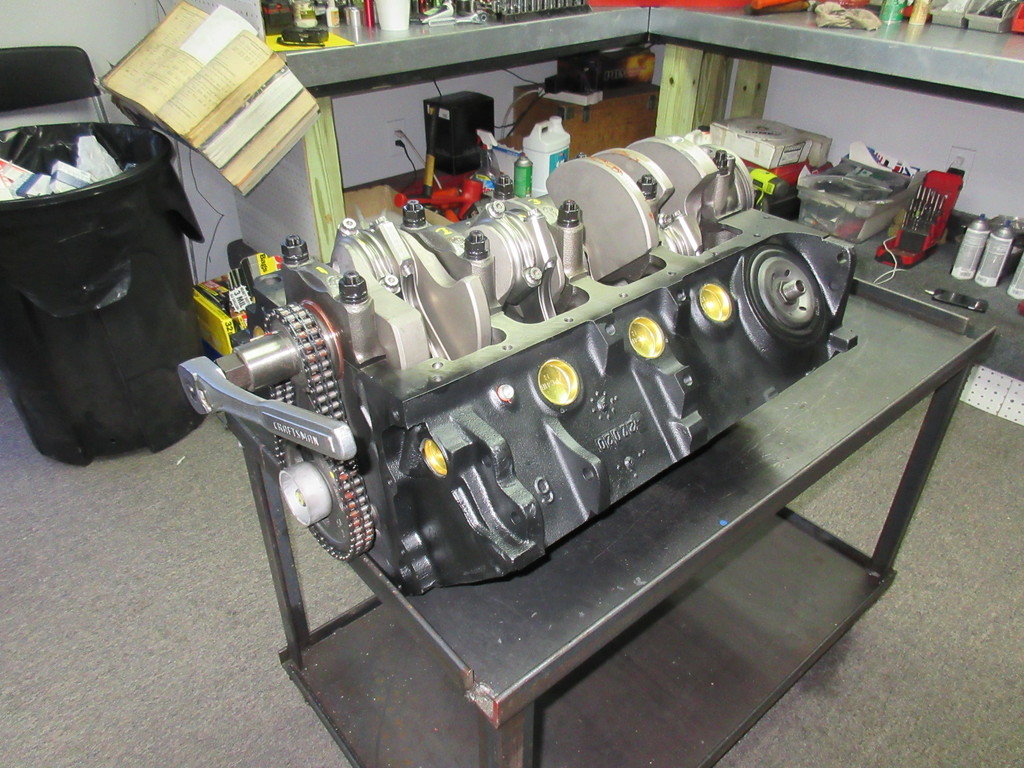

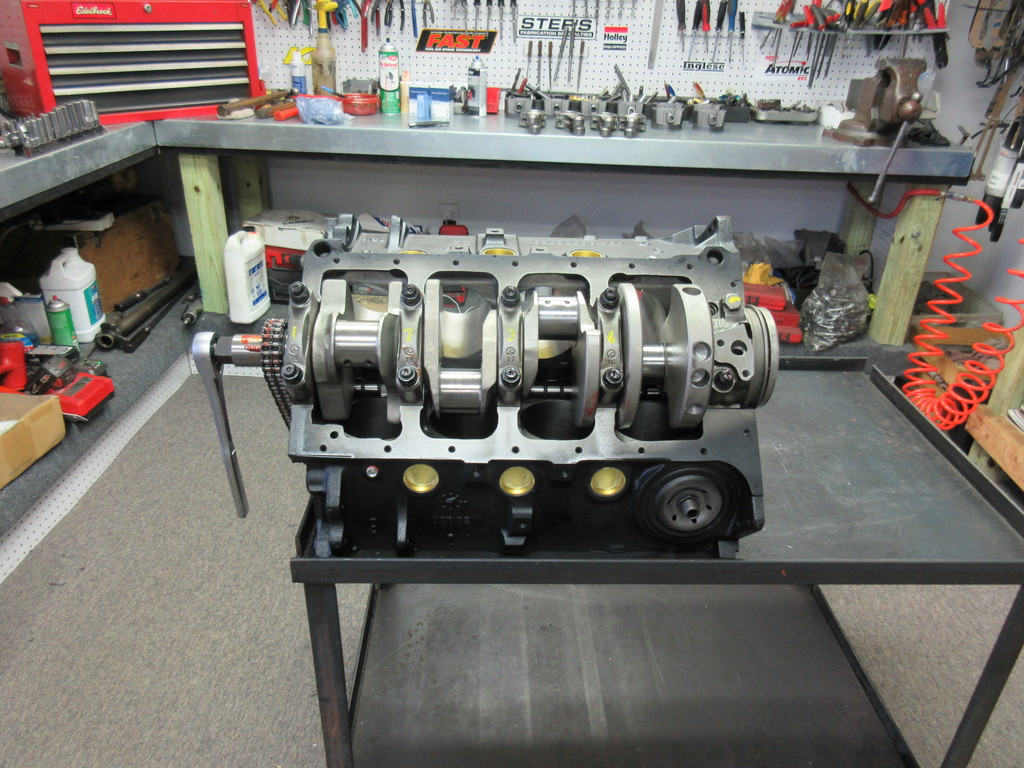

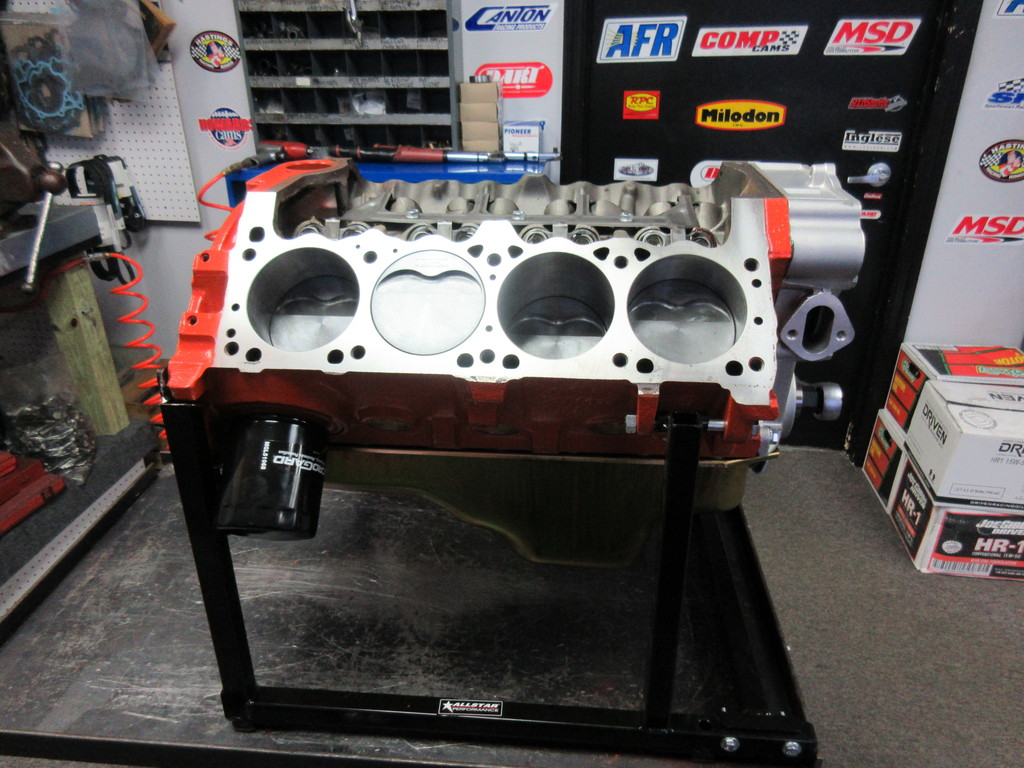

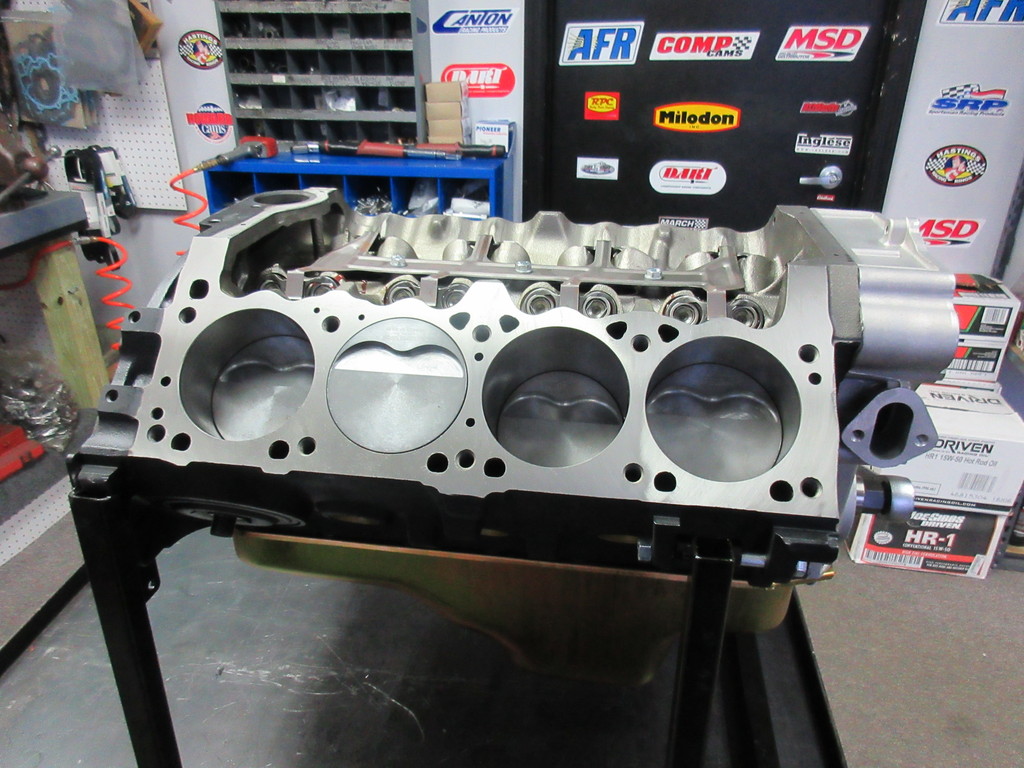

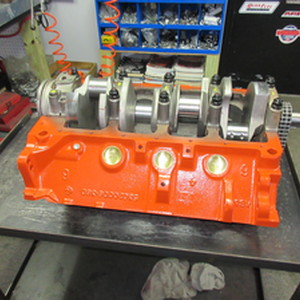

  • Seasoned Chrysler 360 block
  • Bored and honed with deck plate
  • ARP main bolts
  • Mains have been align honed
  • Block has been decked
  • Dura Bond cam bearings installed
  • Brass freeze plug and oil galley kit installed

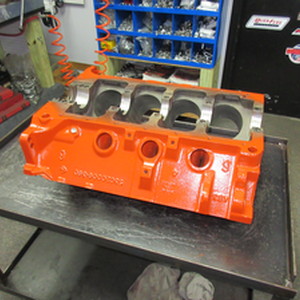

  • Block painted with 3 coats of high temp ceramic engine paint customer's choice of color

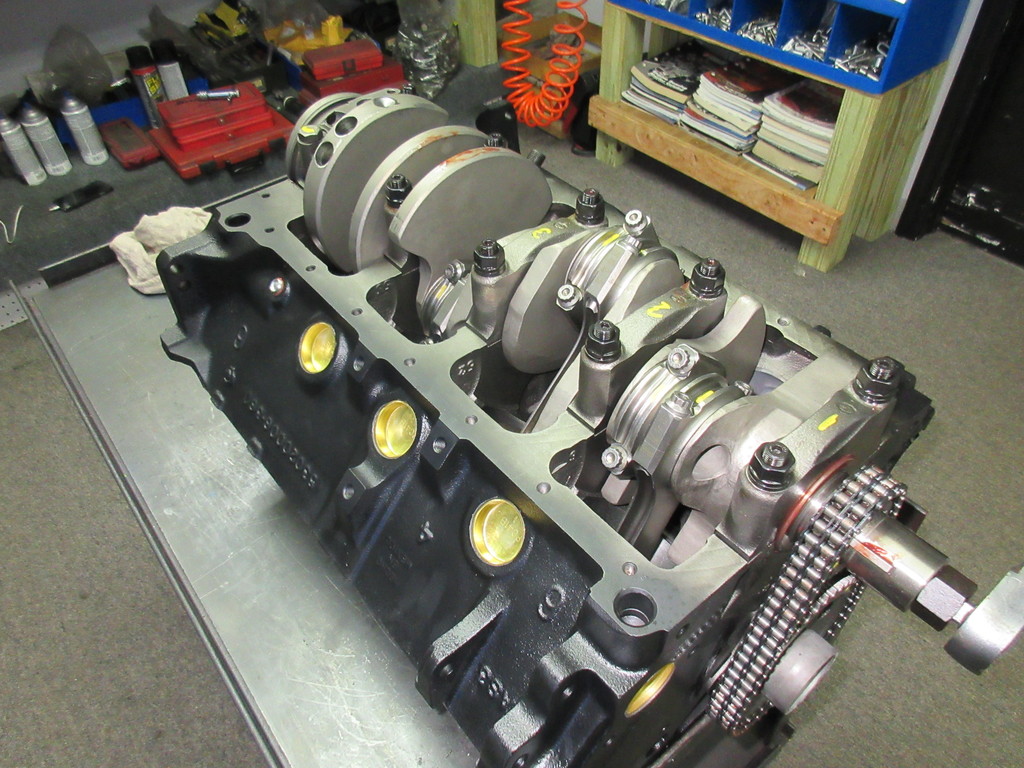

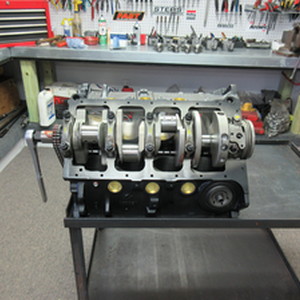

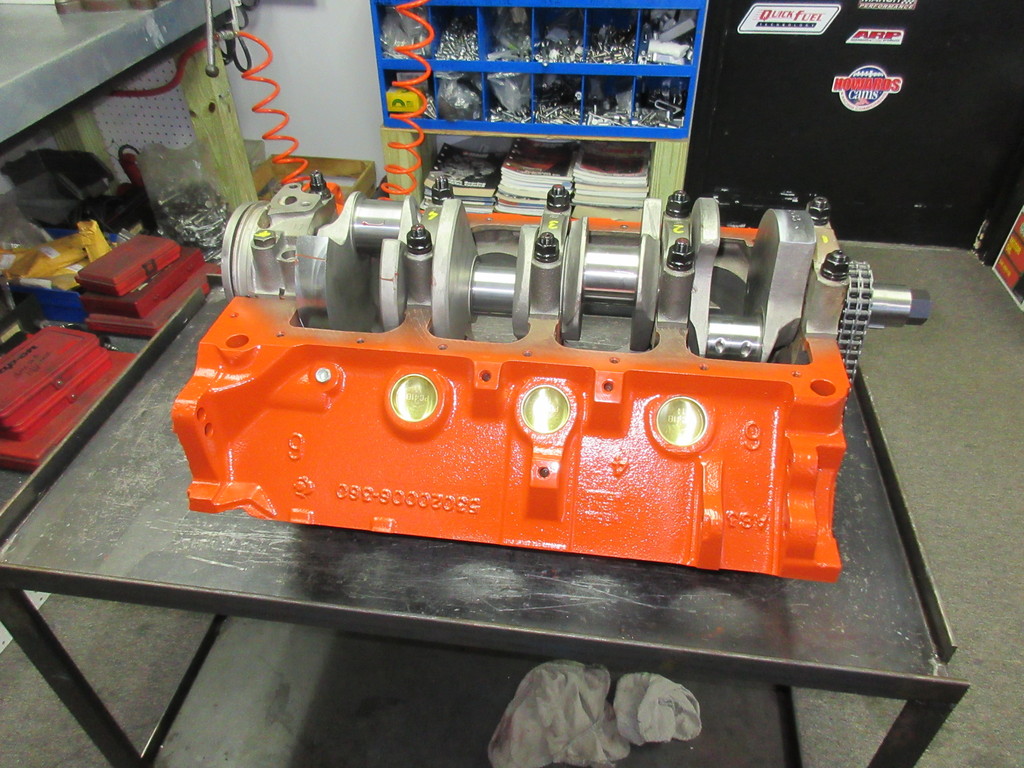

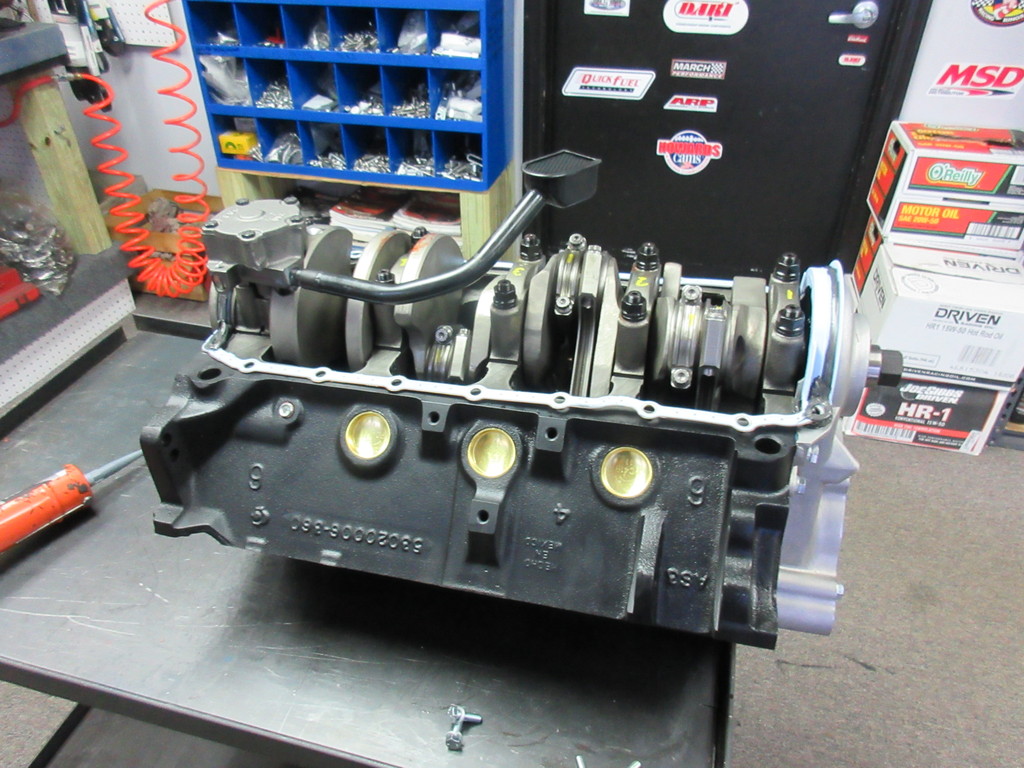

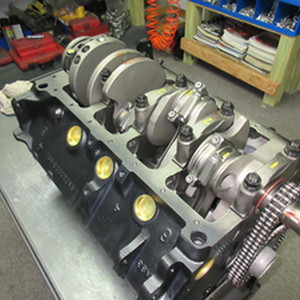

  • Steel performance crankshaft (Eagle or Scat)

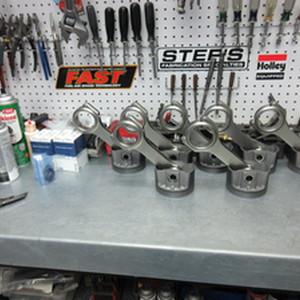

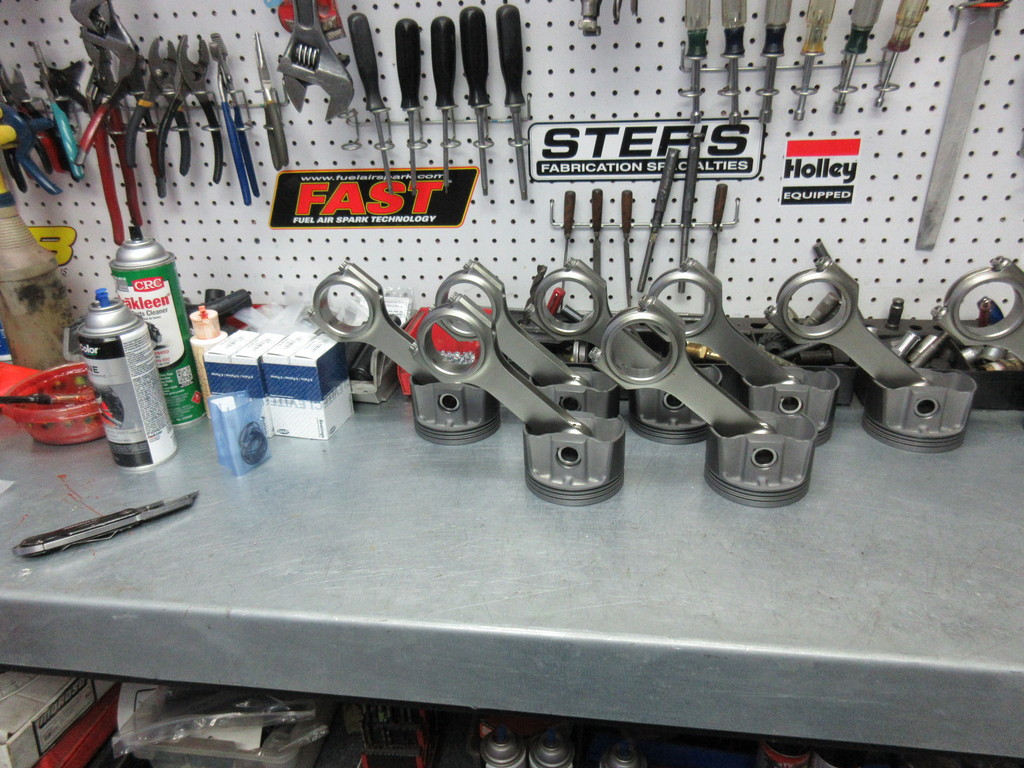

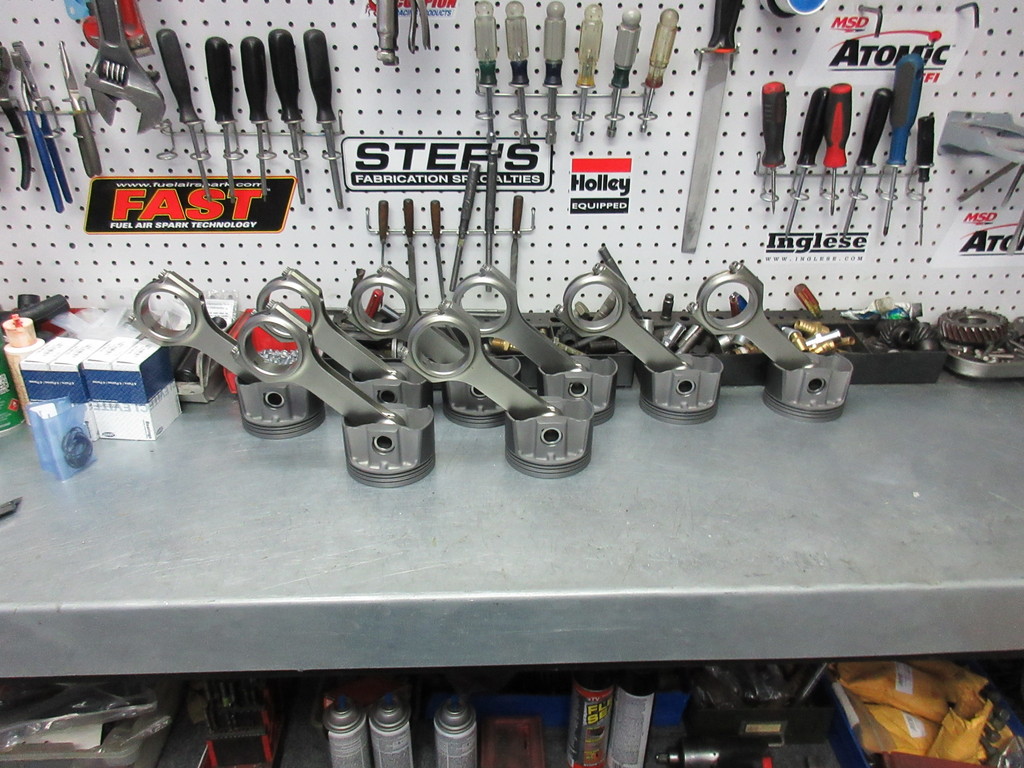

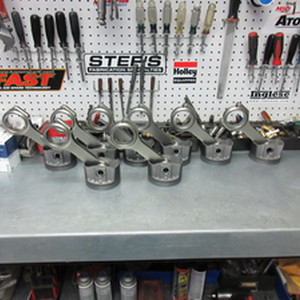

  • I-Beam connecting rods (Eagle or Scat)

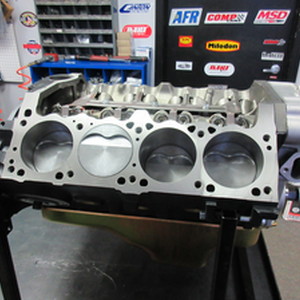

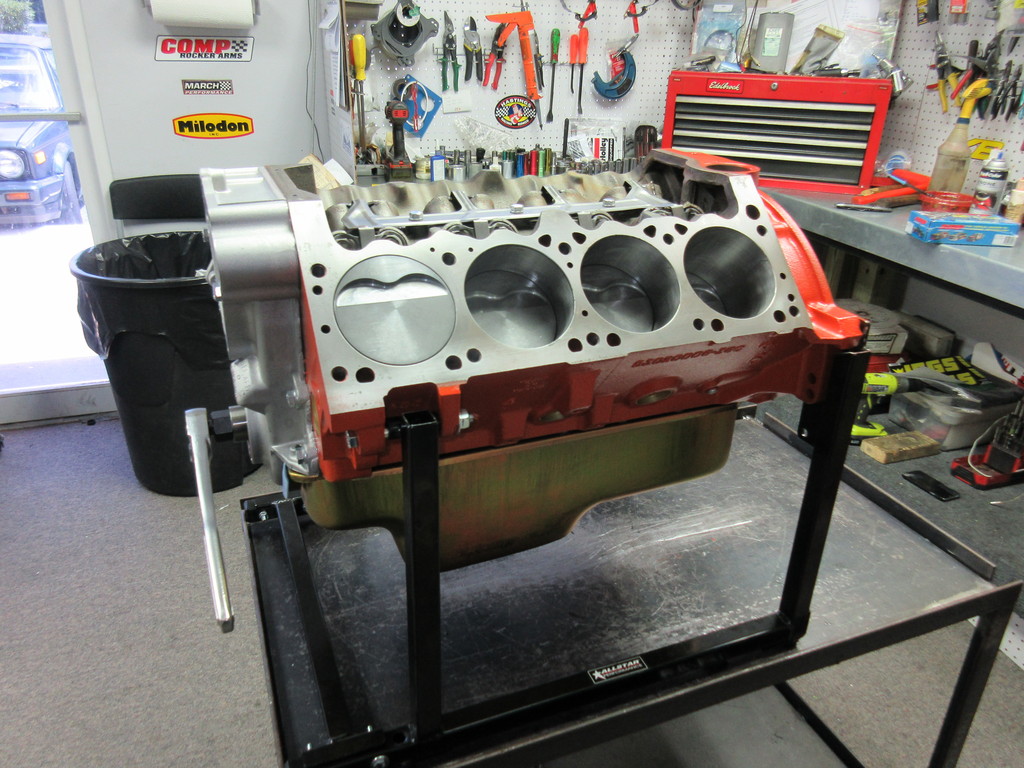

  • Performance pistons (Mahle, Icon or SRP)
  • Performance rod and main bearing (Clevite, King or Federal Mogul)
  • Performance rings hand filed to match application
  • The complete rotating assembly will be balanced internal
  • Custom ground hydraulic roller performance street camshaft with a muscle car chop

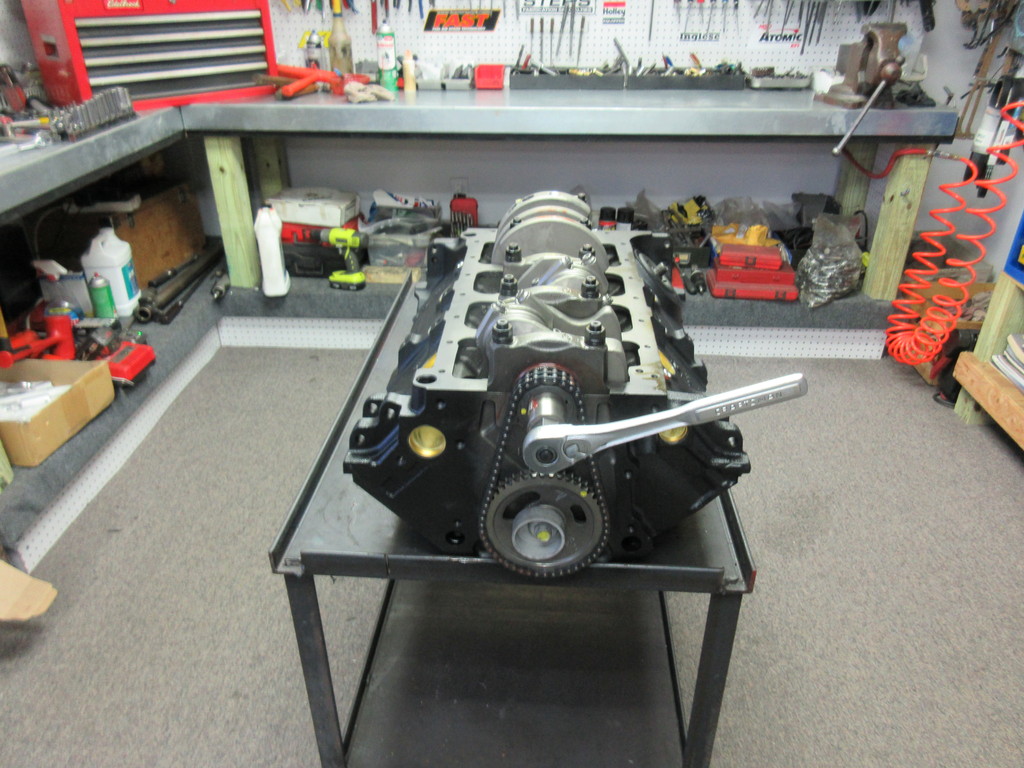

  • Three piece true double roller timing set
  • Hydraulic roller lifters (Comp Evolution Series)
  • Performance aluminum cylinder heads
  • High performance valve springs and retainers (to match camshaft)
  • Chrome moly push rods
  • Performance roller rockers
  • Melling oil pump
  • Melling oil pick up
  • Oil pan
  • Dipstick and tube
  • Timing cover
  • Engine will be assembled with all new bolts
  • ARP head bolts
  • Fel-Pro performance gaskets
  • Performance balancer
  • Aluminum performance intake manifold
  • Thermostat housing

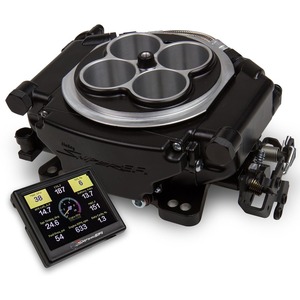

  • Holley Sniper II EFI
  • Holley Hyper Spark distributor (Requires CDI box)
  • MSD Blaster II coil and bracket
  • Spark plugs
  • 8mm Ignition wires
  • High flow water pump
  • Valve covers
  • Chrome breather

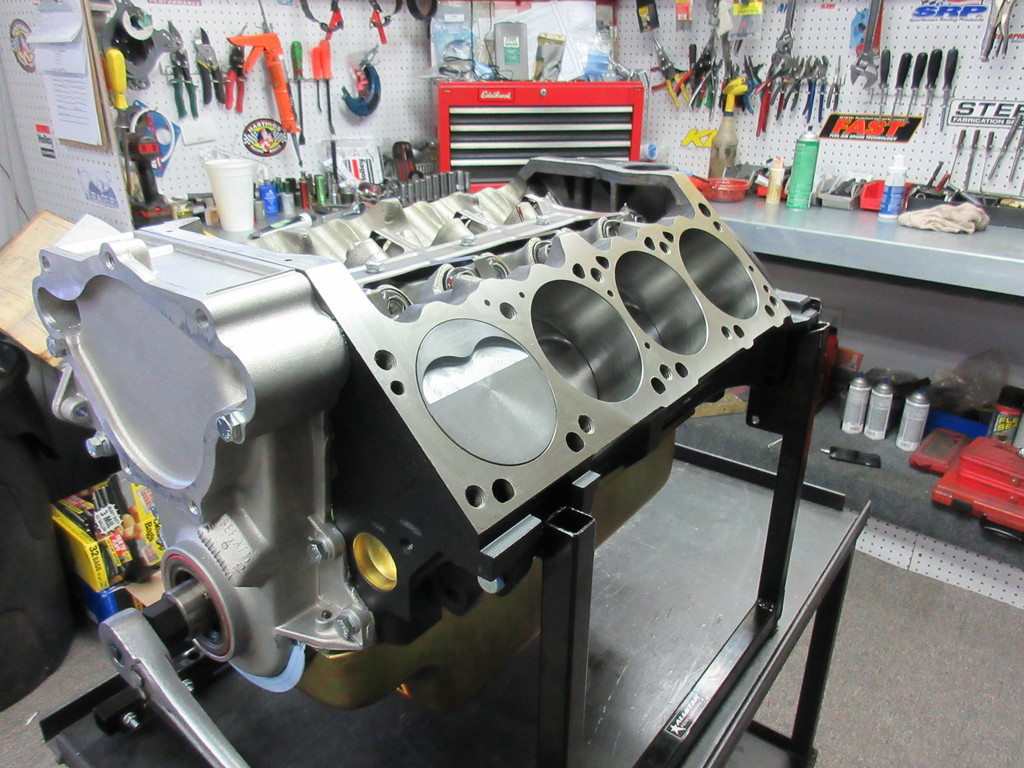

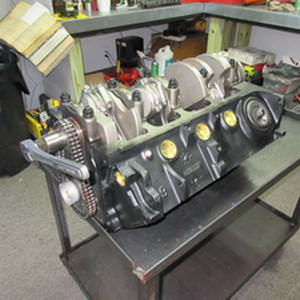

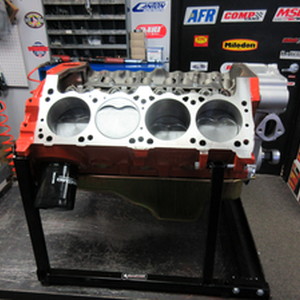

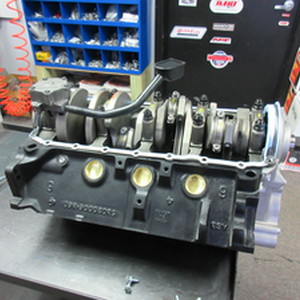

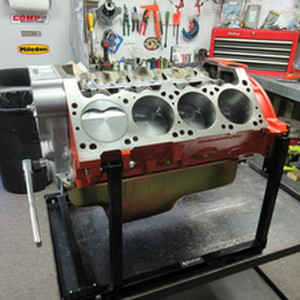

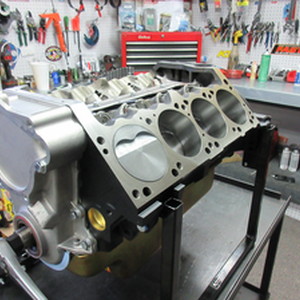

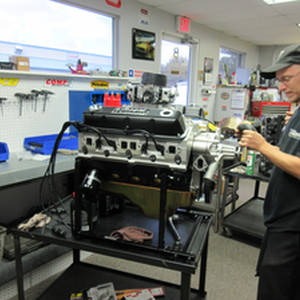

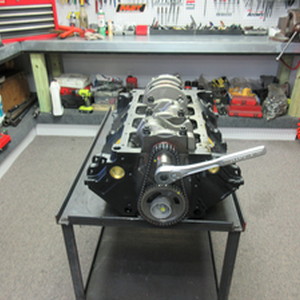

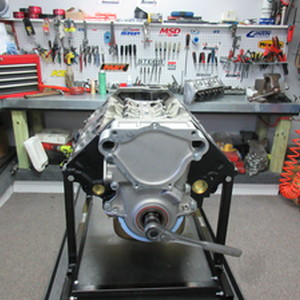

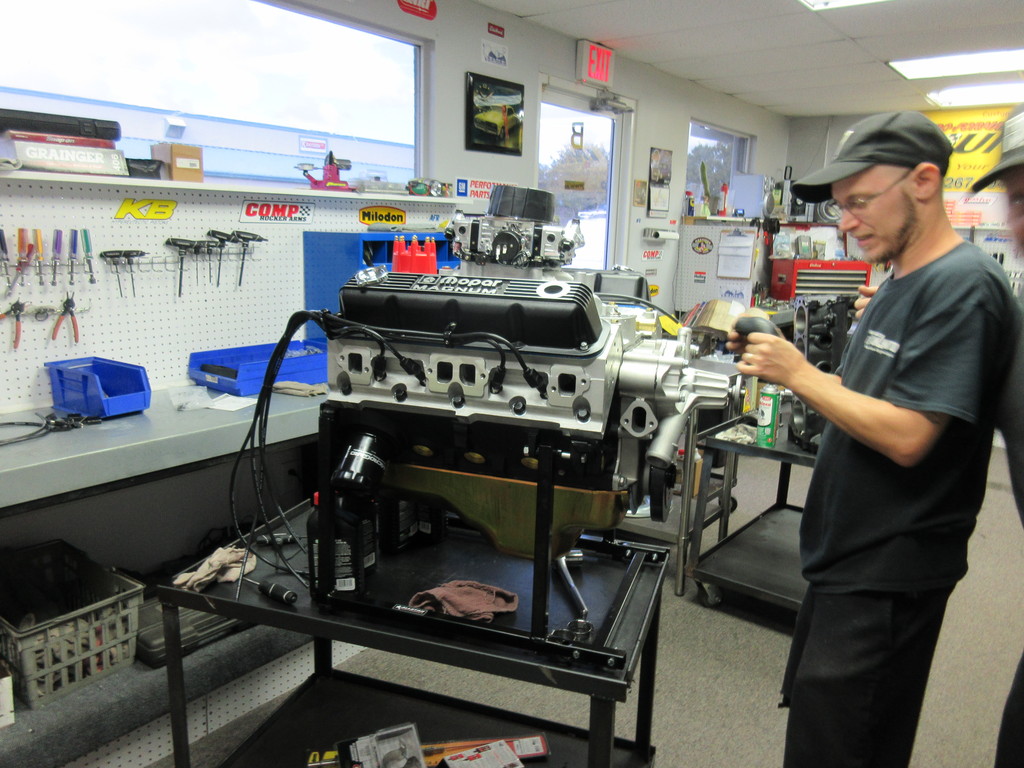

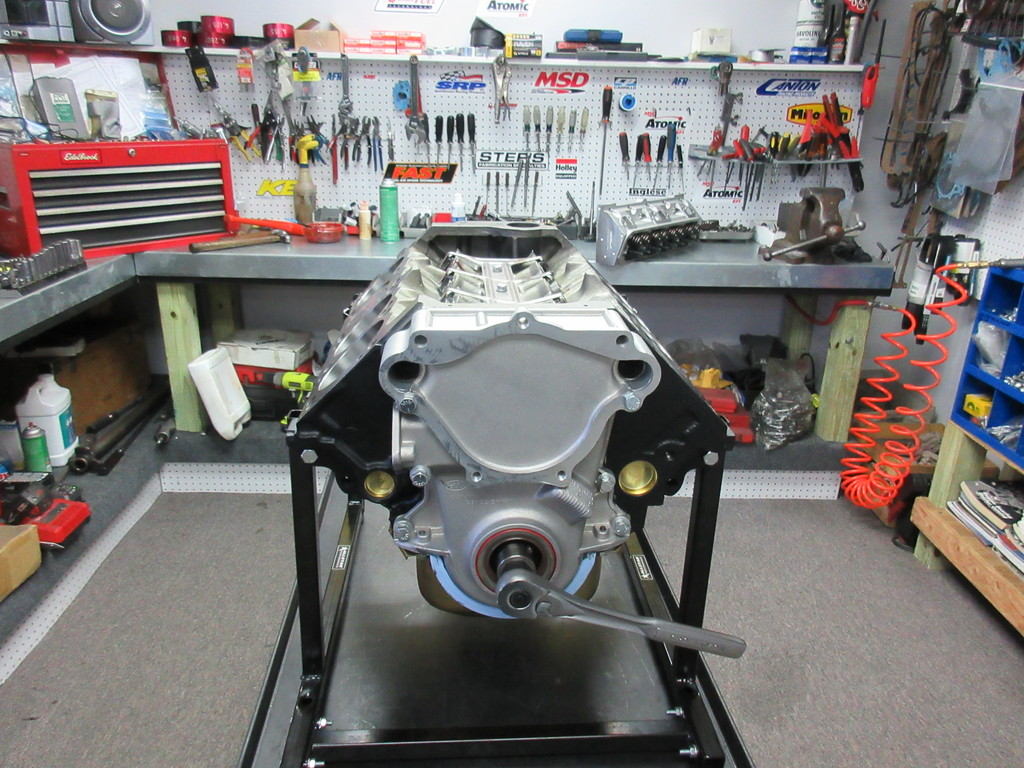

  • Engines are photo documented during the building process so you can see the quality of parts and workmanship that goes into your engine
  • 1 Year Unlimited Miles Warranty

CVF Logo

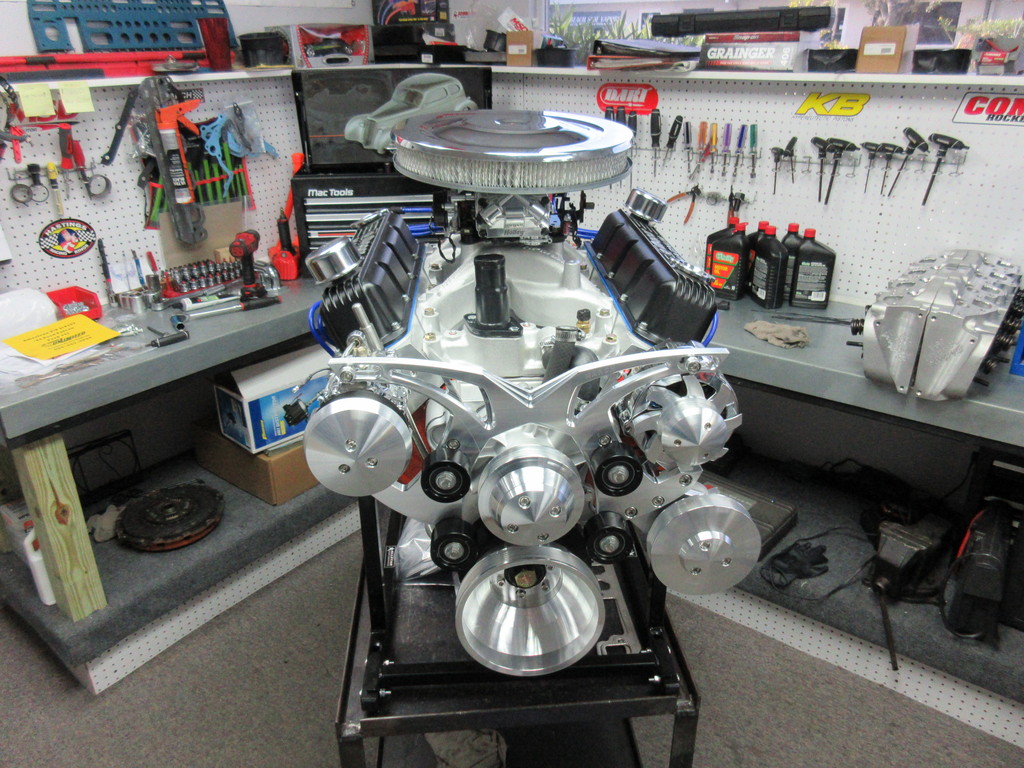

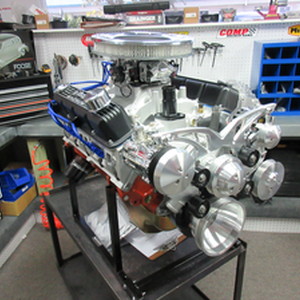

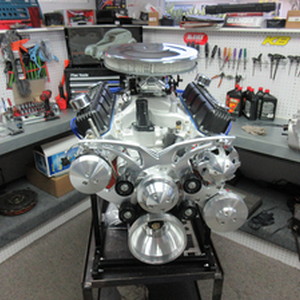

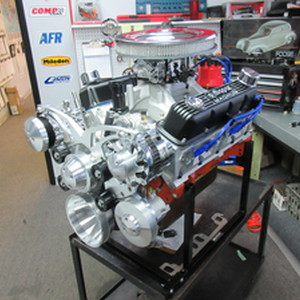

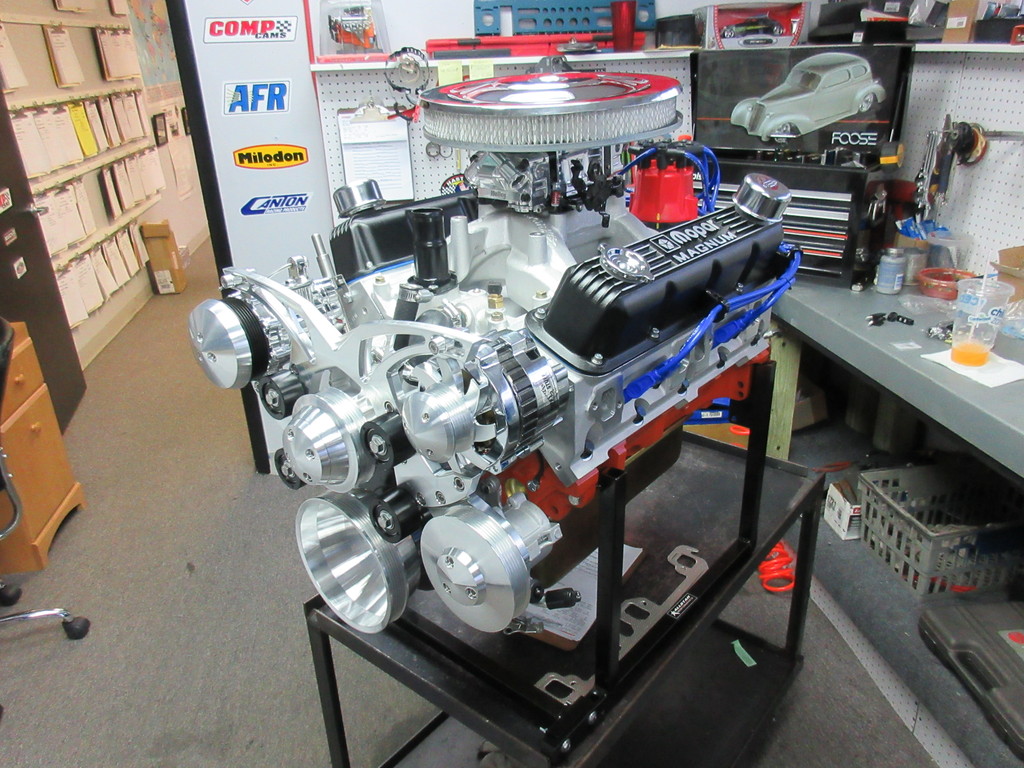

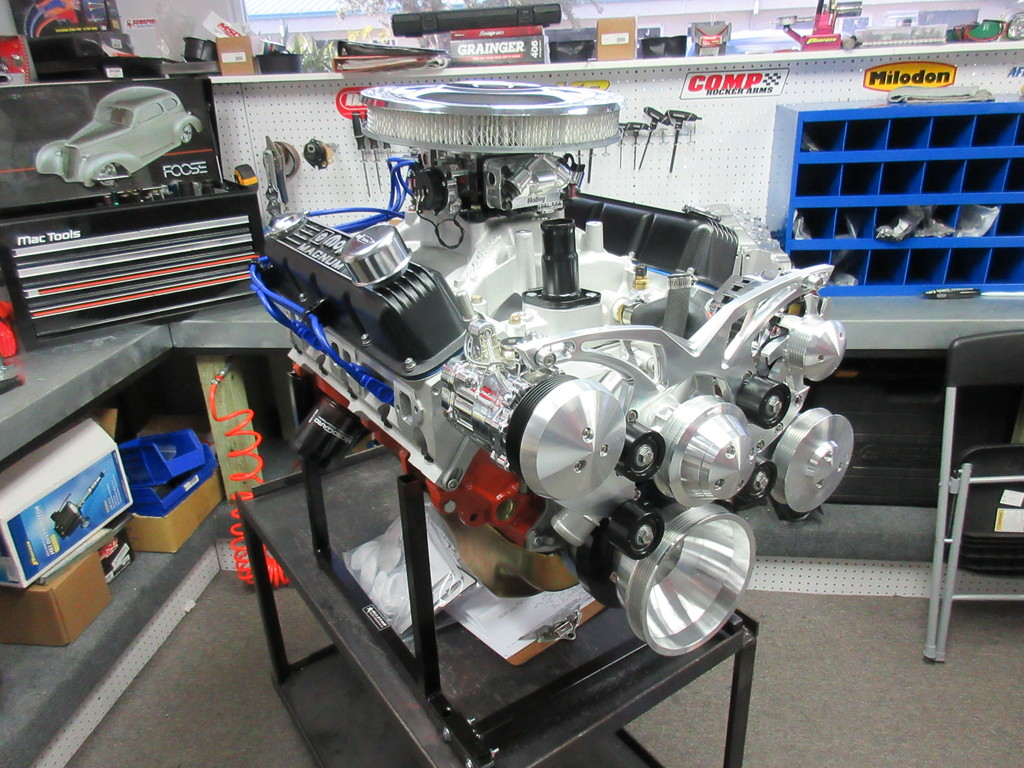

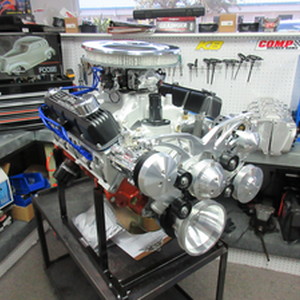

Pulley Systems

Alternator Only

Alternator Only

This system includes the following items:

  • Chrome 140 Amp Alternator
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $1,675

Alternator & Power Steering

Alternator & Power Steering

This system includes the following items:

  • Chrome 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Polished Idler Pulley
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $1,875

Alternator, Power Steering & Air Conditioning

Alternator, Power Steering & Air Conditioning

This system includes the following items:

  • Chrome Plated 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Chrome Plated AC Compressor
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $2,300

Dyno Testing

Have your new crate engine Dyno tested!

Have your new crate engine Dyno tested!

Proformance Unlimited measures over 30 parameters that are monitored and logged to the computer during each engine test. A complete printout, including graphs.

We tune your engine on the dyno for maximum power. No more endless trial and error methods at the track are required. You see your results instantly! Dynamometer testing costs a fraction of what you have invested. Take the guesswork out of tuning - by dynoing !

This system includes the following items:

  • Your engine will be broken in under various load conditions
  • Tested in real world conditions through headers and mufflers
  • Precise horsepower and torque rating with graph and numerical print out
  • Induction system tuned for optimal performance
  • Dyno session video taped

Add $850

Dress Up

Custom Painted Engine

Custom Painted Engine

Have a custom painted car? Why not have a custom painted engine? Give us your paint code and we'll do the rest.

This system includes the following items:

  • Custom paint

Add $550

Parts

MSD Street Fire CD Ignition

MSD Street Fire CD Ignition

MSD Street Fire CD ignitions are perfect for budget-minded enthusiasts. Street Fire CD ignitions offer capacitive discharge technology that fires a series of multiple sparks for 20 degrees of crankshaft rotation when the engine is running under 3,000 rpm. This ensures complete combustion and produces great throttle response with a smooth idle. MSD’s Street Fire CD ignitions are built within a durable cast aluminum housing and easily connects to points, amplifiers, and magnetic pickup distributors. There’s even an adjustable rev limiter (100 rpm increments) for overrev protection!

This system includes the following items:

  • Ignition Control Module; Street Fire CDI

Add $275

Fuel Delivery Systems

Holley Terminator X Multi-Port Fuel Injection

Holley Terminator X Multi-Port Fuel Injection

This system includes the following items:

  • Multi-Port EFI Intake
  • Terminator X ECU
  • Holley Wiring Harness
  • Handheld Controller
  • (8) Injectors Matched To Application
  • Billet Fuel Rail
  • Internal MAP Sensor
  • Throttle Position Sensor
  • Idle Air Control
  • Coolant Temp Sensor
  • Wide band O2 Sensor
  • Hyper Spark Distributor
  • -06AN Fuel Inlet Fitting

Add $1,500
